Main Features:
-
The equipment adopts high quality transmission system, which is with the smooth running without noise.
-
The flexible adjustment lever, fixed in the machine, can have the film distance being adjusted rapidly and effectively. So to achieve the accurate positioning.
-

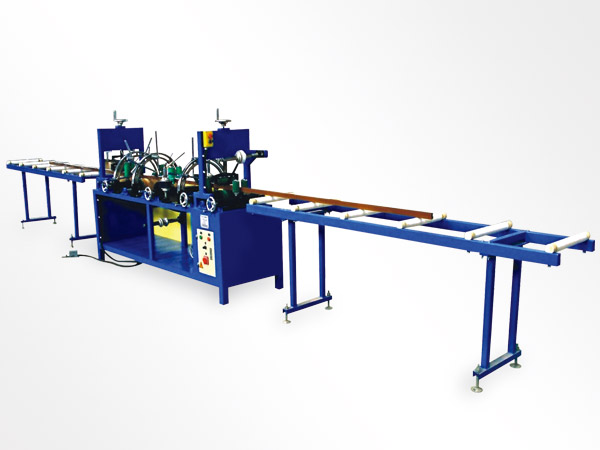

'JYSF200' sticking film machine uses swift rapid changing and clamping device. The angle and direction of the pinch roller can be changed in a short time to adapt to the requirement of different cross section profiles. So, productivity can be greatly enhanced.
-
'JYSF200.S' sticking film machine uses swift rapid changing and clamping device, with the feature of fast speed, high efficiency, is applicable for laminating 4 sides of the profiles.
-
Easy operation and user-friendly.
Main Technical Parameters
Model
|
JYSF200
|
JYSF200.S
|
Product Dimension (W*H) (Maximum)
|
200 ¡Á 150 mm
|
200 ¡Á 150 mm
|
Operating Range
|
Top, Bottom, Left, Right ,
Bevel and Surface of Any Angle
|
Top, Bottom, Left, Right Surface (4 sides)
|
Speed Regulating Range
|
0 ¡« 120 m/min
|
0 ¡« 200 m/min
|
Work Temperature
|
0~40 ¡æ
|
0~40 ¡æ
|
Total Power
|
1.5 kW
|
1.1 kW
|
Electric Supply
|
220 V 50 Hz
|
220 V 50 Hz
|
Dimension (L*W*H)
|
2300 ¡Á 680 ¡Á 1450 mm
|
1850 ¡Á 750 ¡Á 1350 mm
|
Auxiliary Rack Dimension (L*W*H)
|
2500 ¡Á 500 ¡Á 800 mm
|
2500 ¡Á 500 ¡Á 800 mm
|
Weight
|
600 kg Approx.
|
500 kg Approx.
|
NOTES: Customized design according to customers¡¯ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
